Third-Party Integration API Platform

Project Overview

The Third-Party Integration API Platform is a comprehensive RESTful API system designed to enable external partners and developers to integrate with the Zimi smart home ecosystem. This platform provides secure access to device information, control capabilities, and real-time status updates while maintaining the highest standards of security, performance, and reliability.

The Challenge

Creating a robust API platform for third-party integrations required addressing several complex requirements:

• Security: Implementing OAuth2 with granular user consent and authorization
• Performance: High-throughput API capable of handling thousands of concurrent requests
• Real-time Communication: Event-driven architecture for instant status updates
• Scalability: Platform designed to support hundreds of integration partners
• Developer Experience: Comprehensive documentation and testing tools
• Reliability: 99.9% uptime with comprehensive monitoring and error handling

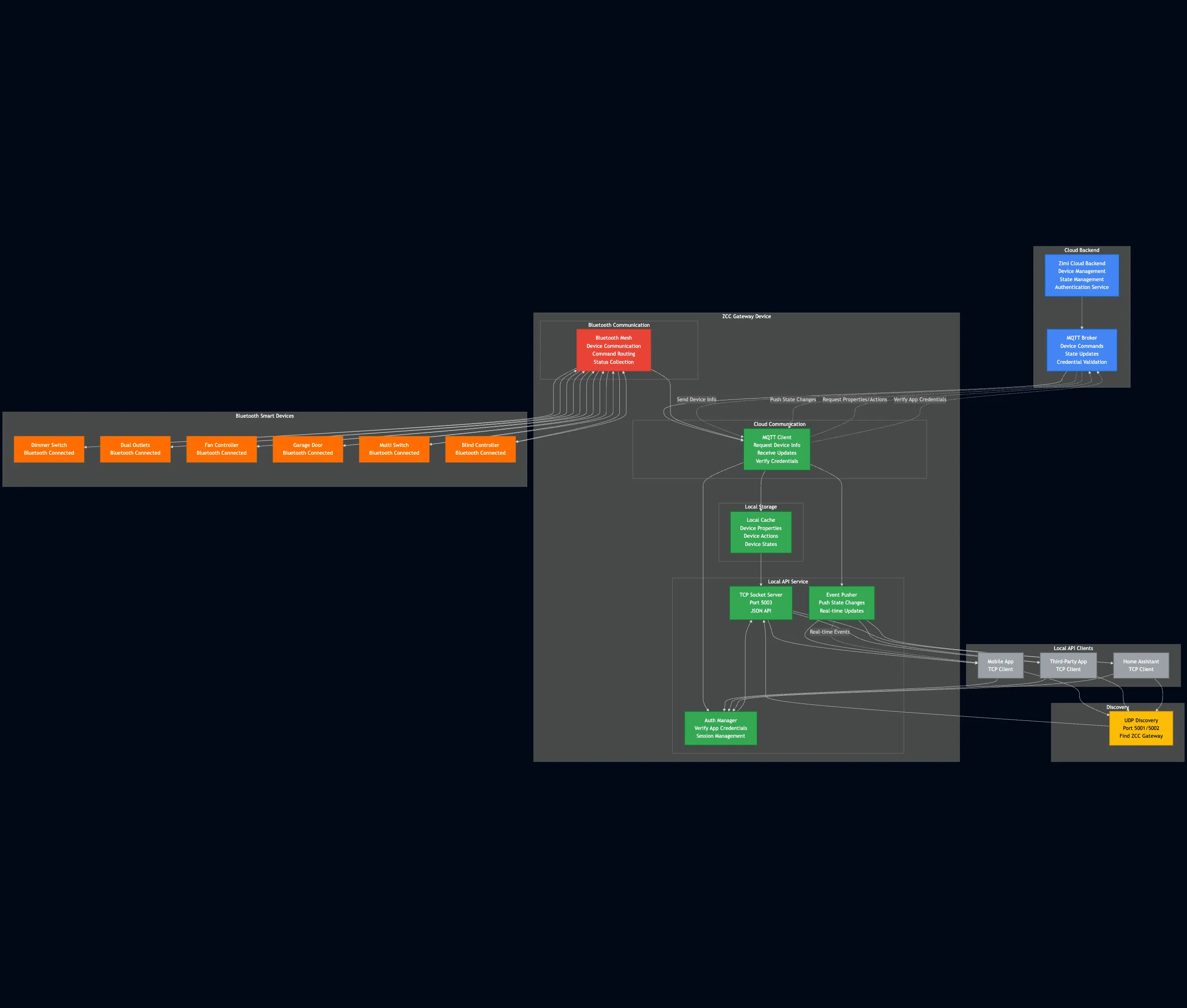

System Architecture

Event-Driven API Design

Built around an event-driven architecture to eliminate polling and ensure real-time synchronization:

// Event-driven API architecture
interface APIEvent {
  type: 'device_status_change' | 'device_added' | 'device_removed';
  deviceId: string;
  userId: string;
  timestamp: Date;
  data: any;
}

class EventBroker {
  private pubsub: PubSub;
  private subscriptions: Map<string, WebhookSubscription[]>;

  async publishEvent(event: APIEvent): Promise<void> {
    // Publish to internal PubSub for real-time processing
    await this.pubsub.publish('api-events', event);

    // Notify subscribed webhooks
    await this.notifyWebhooks(event);
  }

  private async notifyWebhooks(event: APIEvent): Promise<void> {
    const webhooks = this.subscriptions.get(event.userId) || [];

    const notifications = webhooks.map(webhook =>
      this.sendWebhook(webhook, event)
    );

    await Promise.allSettled(notifications);
  }
}

Microservices Architecture

• API Gateway: Request routing, authentication, and rate limiting
• Authorization Service: OAuth2 implementation and token management
• Device Service: Device information and control operations
• Event Service: Real-time event processing and webhook delivery
• Documentation Service: Interactive API documentation and testing

OAuth2 Security Implementation

Authorization Flow

Implemented comprehensive OAuth2 authorization with user consent management:

class OAuth2Service {
  async initiateAuthFlow(clientId: string, scopes: string[], redirectUri: string) {
    // Validate client and redirect URI
    const client = await this.validateClient(clientId, redirectUri);

    // Generate authorization code
    const authCode = await this.generateAuthorizationCode({
      clientId,
      scopes,
      redirectUri,
      expiresAt: new Date(Date.now() + 10 * 60 * 1000) // 10 minutes
    });

    return {
      authorizationUrl: `${this.authEndpoint}?${new URLSearchParams({
        response_type: 'code',
        client_id: clientId,
        scope: scopes.join(' '),
        redirect_uri: redirectUri,
        code: authCode
      })}`
    };
  }

  async exchangeCodeForToken(code: string, clientId: string, clientSecret: string) {
    // Validate authorization code
    const authData = await this.validateAuthorizationCode(code);

    // Verify client credentials
    await this.verifyClientCredentials(clientId, clientSecret);

    // Generate access and refresh tokens
    const accessToken = await this.generateAccessToken({
      userId: authData.userId,
      clientId,
      scopes: authData.scopes,
      expiresIn: 3600 // 1 hour
    });

    const refreshToken = await this.generateRefreshToken({
      userId: authData.userId,
      clientId
    });

    return {
      access_token: accessToken,
      refresh_token: refreshToken,
      token_type: 'Bearer',
      expires_in: 3600,
      scope: authData.scopes.join(' ')
    };
  }
}

Granular Permissions

Implemented fine-grained permission system allowing users to control exactly what data and capabilities they share:

interface APIScope {
  name: string;
  description: string;
  resources: string[];
  actions: string[];
}

const API_SCOPES: APIScope[] = [
  {
    name: 'devices:read',
    description: 'Read basic device information',
    resources: ['devices'],
    actions: ['read']
  },
  {
    name: 'devices:control',
    description: 'Control device state (turn on/off, brightness, etc.)',
    resources: ['devices'],
    actions: ['write', 'execute']
  },
  {
    name: 'events:subscribe',
    description: 'Receive real-time device status updates',
    resources: ['events'],
    actions: ['subscribe']
  }
];

API Design & Implementation

RESTful Endpoints

Designed comprehensive REST API with OpenAPI 3.0 specification:

// Device control endpoint
@Route('/api/v1/devices/{deviceId}/actions')
export class DeviceActionsController {
  @Post('/')
  @Security('oauth2', ['devices:control'])
  public async executeAction(
    @Path() deviceId: string,
    @Body() action: DeviceAction,
    @Request() request: AuthenticatedRequest
  ): Promise<ActionResult> {

    // Validate user has access to device
    await this.validateDeviceAccess(request.user.id, deviceId);

    // Execute action with timeout and error handling
    const result = await this.deviceService.executeAction(deviceId, action);

    // Publish event for real-time updates
    await this.eventBroker.publishEvent({
      type: 'device_status_change',
      deviceId,
      userId: request.user.id,
      timestamp: new Date(),
      data: result
    });

    return result;
  }

  private async validateDeviceAccess(userId: string, deviceId: string): Promise<void> {
    const hasAccess = await this.authService.userHasDeviceAccess(userId, deviceId);
    if (!hasAccess) {
      throw new ForbiddenError('Access denied to device');
    }
  }
}

Real-time Event Delivery

Implemented webhook system for real-time event delivery to partner systems:

class WebhookDeliveryService {
  private queue: Queue<WebhookDelivery>;
  private retryPolicy: RetryPolicy;

  async deliverWebhook(webhook: WebhookSubscription, event: APIEvent): Promise<void> {
    const delivery: WebhookDelivery = {
      webhookId: webhook.id,
      url: webhook.url,
      payload: this.formatEventPayload(event),
      headers: {
        'Content-Type': 'application/json',
        'X-Webhook-Signature': this.signPayload(webhook.secret, event),
        'X-Event-Type': event.type,
        'X-Delivery-ID': this.generateDeliveryId()
      },
      attempts: 0,
      maxAttempts: 3
    };

    await this.queue.add('webhook-delivery', delivery);
  }

  private signPayload(secret: string, payload: any): string {
    const data = JSON.stringify(payload);
    return crypto
      .createHmac('sha256', secret)
      .update(data)
      .digest('hex');
  }

  async processDelivery(delivery: WebhookDelivery): Promise<void> {
    try {
      const response = await fetch(delivery.url, {
        method: 'POST',
        headers: delivery.headers,
        body: JSON.stringify(delivery.payload),
        timeout: 10000 // 10 second timeout
      });

      if (!response.ok) {
        throw new Error(`HTTP ${response.status}: ${response.statusText}`);
      }

      await this.recordSuccessfulDelivery(delivery);
    } catch (error) {
      await this.handleDeliveryFailure(delivery, error);
    }
  }
}

Performance & Scalability

Caching Strategy

Implemented multi-layer caching for optimal performance:

class CachedDeviceService {
  private cache: Redis;
  private deviceService: DeviceService;

  async getDevice(deviceId: string, userId: string): Promise<Device> {
    const cacheKey = `device:${deviceId}:${userId}`;

    // Try L1 cache (Redis)
    const cached = await this.cache.get(cacheKey);
    if (cached) {
      return JSON.parse(cached);
    }

    // Fallback to database
    const device = await this.deviceService.getDevice(deviceId, userId);

    // Cache for 5 minutes
    await this.cache.setex(cacheKey, 300, JSON.stringify(device));

    return device;
  }

  // Cache invalidation on device updates
  async updateDevice(deviceId: string, userId: string, updates: DeviceUpdate): Promise<Device> {
    const device = await this.deviceService.updateDevice(deviceId, userId, updates);

    // Invalidate cache
    await this.cache.del(`device:${deviceId}:${userId}`);

    return device;
  }
}

Rate Limiting

Implemented sophisticated rate limiting to prevent abuse while allowing legitimate usage:

class RateLimiter {
  private redis: Redis;

  async checkRateLimit(clientId: string, endpoint: string): Promise<RateLimitResult> {
    const key = `rate_limit:${clientId}:${endpoint}`;
    const window = 3600; // 1 hour window
    const limit = this.getLimitForEndpoint(endpoint);

    const multi = this.redis.multi();
    multi.incr(key);
    multi.expire(key, window);

    const [count] = await multi.exec();

    return {
      allowed: count <= limit,
      remaining: Math.max(0, limit - count),
      resetTime: Date.now() + (window * 1000)
    };
  }

  private getLimitForEndpoint(endpoint: string): number {
    const limits = {
      '/devices': 1000,      // 1000 requests per hour
      '/devices/actions': 500, // 500 actions per hour
      '/events': 100         // 100 webhook subscriptions per hour
    };

    return limits[endpoint] || 100; // Default limit
  }
}

Developer Experience

Interactive Documentation

Created comprehensive API documentation using OpenAPI 3.0 with interactive testing:

# OpenAPI specification excerpt
paths:
  /devices/{deviceId}/actions:
    post:
      summary: Execute device action
      description: |
        Execute an action on a specific device. Actions include turning devices
        on/off, adjusting brightness, changing colors, etc.
      parameters:
        - name: deviceId
          in: path
          required: true
          schema:
            type: string
            example: "device_12345"
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/DeviceAction'
            examples:
              turn_on:
                summary: Turn device on
                value:
                  action: "turn_on"
              set_brightness:
                summary: Set brightness
                value:
                  action: "set_brightness"
                  parameters:
                    brightness: 75
      responses:
        '200':
          description: Action executed successfully
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/ActionResult'

SDK Development

Created SDKs for popular programming languages to simplify integration:

// TypeScript SDK example
export class ZimiAPI {
  private client: APIClient;

  constructor(accessToken: string) {
    this.client = new APIClient({
      baseURL: 'https://api.zimi.com/v1',
      accessToken
    });
  }

  async getDevices(): Promise<Device[]> {
    return this.client.get('/devices');
  }

  async controlDevice(deviceId: string, action: DeviceAction): Promise<ActionResult> {
    return this.client.post(`/devices/${deviceId}/actions`, action);
  }

  async subscribeToEvents(webhookUrl: string, events: string[]): Promise<Subscription> {
    return this.client.post('/events/subscriptions', {
      url: webhookUrl,
      events
    });
  }
}

Monitoring & Analytics

Comprehensive Monitoring

Implemented detailed monitoring and analytics for API usage:

class APIAnalytics {
  async recordAPICall(request: APIRequest, response: APIResponse): Promise<void> {
    const metrics = {
      endpoint: request.endpoint,
      method: request.method,
      clientId: request.clientId,
      userId: request.userId,
      responseTime: response.duration,
      statusCode: response.statusCode,
      timestamp: new Date()
    };

    // Store in time-series database for analytics
    await this.timeSeriesDB.insert('api_metrics', metrics);

    // Update real-time counters
    await this.redis.incr(`api_calls:${request.clientId}:${this.getCurrentHour()}`);

    // Track error rates
    if (response.statusCode >= 400) {
      await this.redis.incr(`api_errors:${request.clientId}:${this.getCurrentHour()}`);
    }
  }

  async generateUsageReport(clientId: string, period: string): Promise<UsageReport> {
    const metrics = await this.timeSeriesDB.query(`
      SELECT
        endpoint,
        COUNT(*) as request_count,
        AVG(response_time) as avg_response_time,
        COUNT(CASE WHEN status_code >= 400 THEN 1 END) as error_count
      FROM api_metrics
      WHERE client_id = ? AND timestamp >= ?
      GROUP BY endpoint
    `, [clientId, this.getPeriodStart(period)]);

    return this.formatUsageReport(metrics);
  }
}

Results & Impact

Business Impact

• Ecosystem Expansion: Enabled partnerships with 15+ major smart home platforms
• Revenue Growth: Created new API-based revenue streams
• Time to Market: Reduced partner integration time from 6 months to 4 weeks
• Developer Adoption: 50+ active API integrations with 95% developer satisfaction

Technical Achievements

• High Performance: Sub-200ms average response times
• Reliability: 99.9% API uptime with comprehensive error handling
• Scalability: Successfully handling 10M+ API calls per month
• Security: Zero security incidents with comprehensive OAuth2 implementation

Developer Experience

• Comprehensive Documentation: Interactive API docs with code examples
• Multiple SDKs: Support for 5 programming languages
• Quick Onboarding: Developers can integrate basic functionality in under 2 hours
• Robust Testing Tools: Sandbox environment for development and testing

Lessons Learned

API Design Principles

• Developer-First Design: APIs must be intuitive and well-documented
• Versioning Strategy: Plan for API evolution from the beginning
• Error Handling: Consistent, informative error responses are crucial
• Rate Limiting: Balance between preventing abuse and enabling legitimate use

Security Considerations

• OAuth2 Complexity: Proper OAuth2 implementation requires careful attention to detail
• Token Management: Secure token storage and refresh flows are critical
• Webhook Security: Signature verification prevents webhook spoofing
• Audit Logging: Comprehensive logging enables security monitoring and compliance

Performance Optimization

• Caching Strategy: Multi-layer caching significantly improves performance
• Database Optimization: Proper indexing and query optimization at scale
• Real-time Events: Event-driven architecture scales better than polling
• Monitoring: Proactive monitoring enables quick issue resolution

Future Enhancements

Advanced Features

• GraphQL Support: More flexible data querying for complex integrations
• Real-time WebSocket API: Direct WebSocket connections for real-time applications
• AI-Enhanced Documentation: Automated code examples and integration guides
• Advanced Analytics: Machine learning-powered usage analytics and optimization

Ecosystem Expansion

• Marketplace Integration: API marketplace for third-party developers
• Certification Program: Partner certification for quality assurance
• Community Platform: Developer community and support forums
• Extended Protocol Support: Support for Matter, Thread, and other emerging standards

This API platform has become a cornerstone of the Zimi ecosystem, enabling rapid expansion through partnerships while maintaining the highest standards of security, performance, and developer experience. The event-driven architecture and comprehensive OAuth2 implementation have proven scalable and secure, supporting the company’s growth into new markets and use cases.
